OMT Group Valves Part Number- 005-554-000

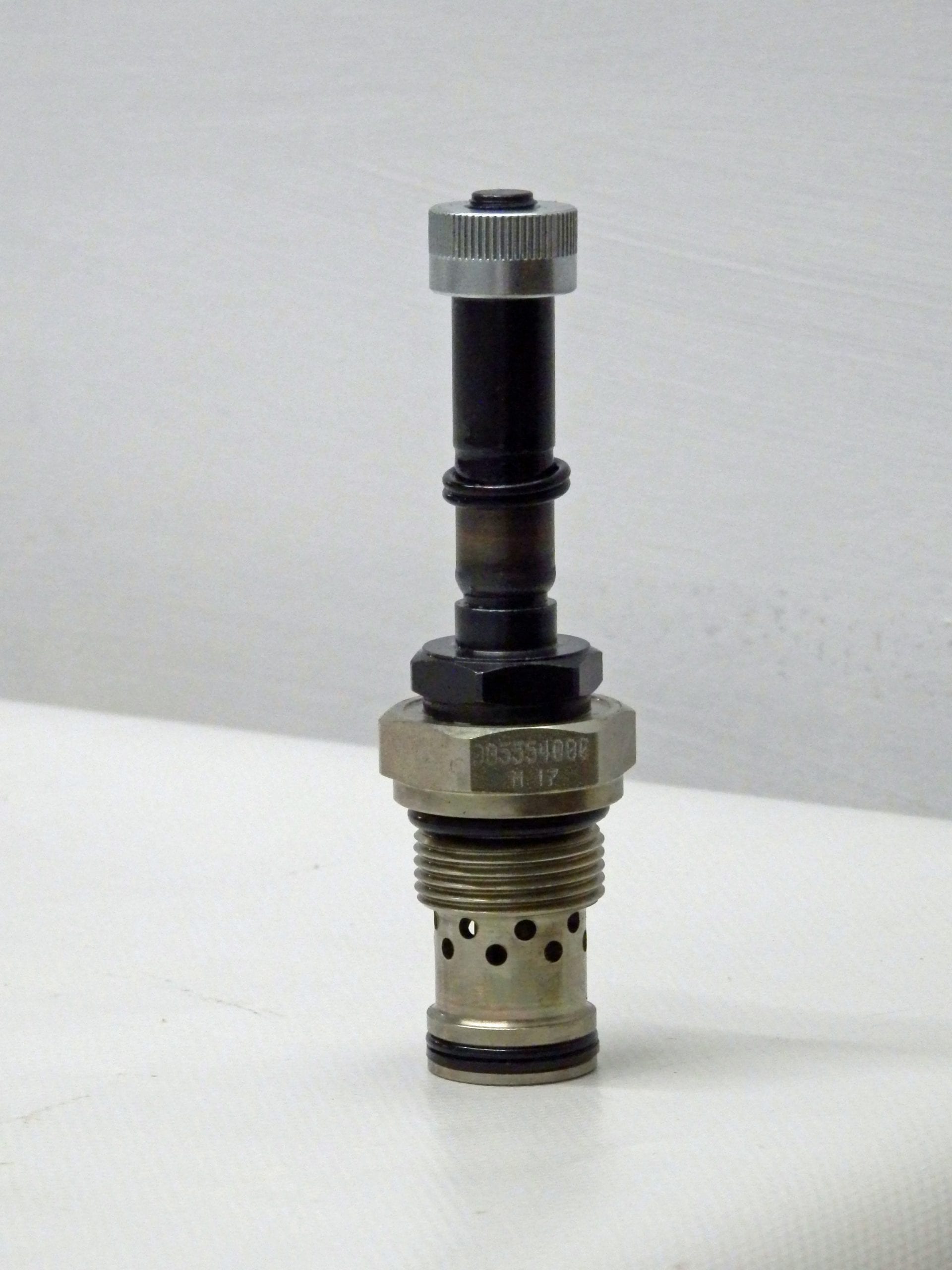

OMT Group Valves Description – VE-NA-80-102L-34GAS – Normally Open Cartridge
Nominal Flow – 80 LPM
Working Pressure – 300 Bar
C37D012DC – 12V DC Coil
C37D024DC – 24V DC Coil
C37D22050 – 220V AC
C37D11050 – 110V AC
005-529-001 – 3/4″ Body for VE-**-80-102L-34GASDownload PDF STEP Format
