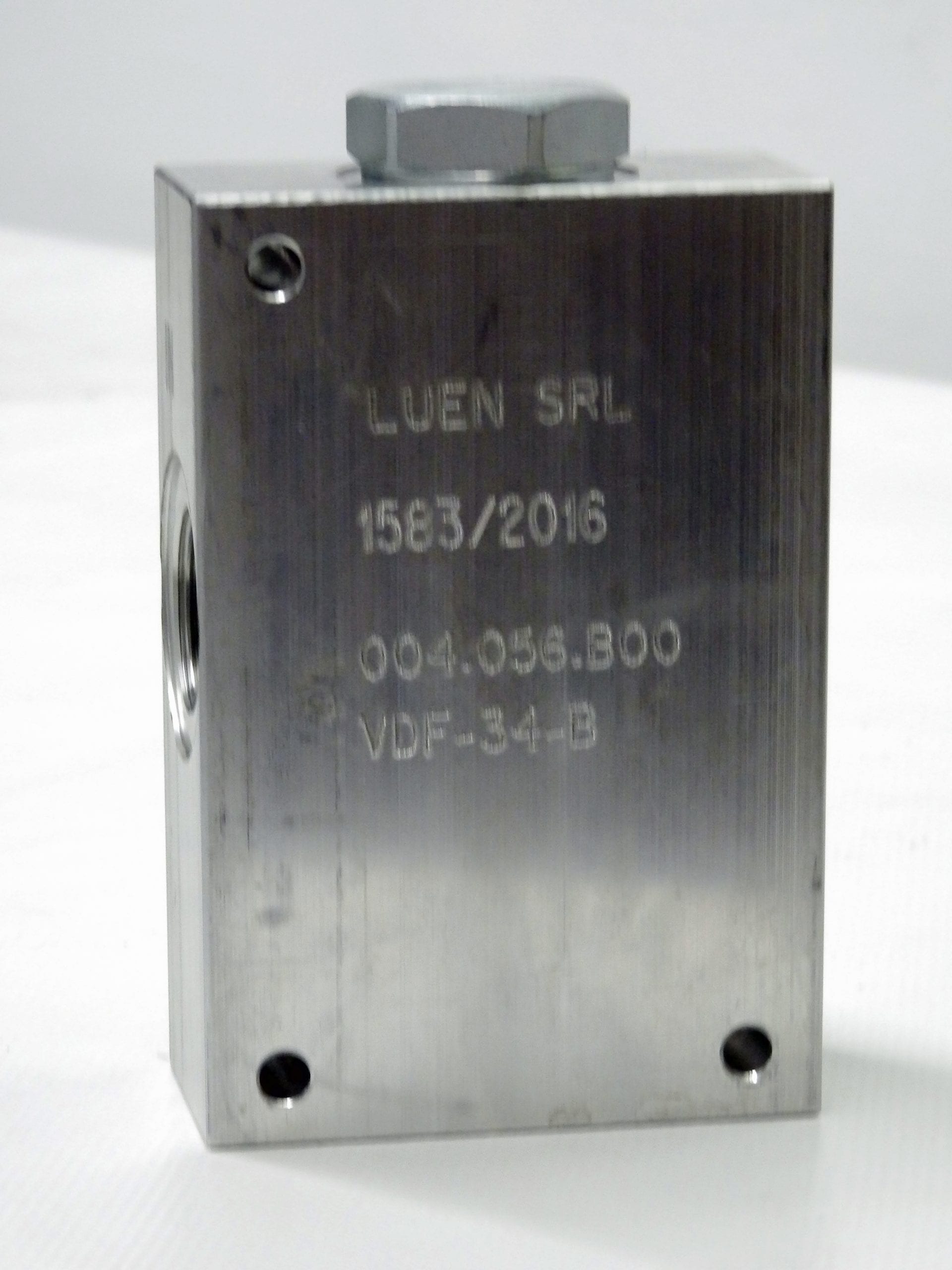

OMT Group Valves Part Number- 004-056-B00
OMT Group Valves Description – VDF-34-B – 50:50 Flow Divider/Combiner
Nominal Flow – 15 – 90 LPM
Working Pressure – 210 Bar
Number of Ports – 3
Port Size V – 3/4″ BSP
Port Size C1 – C2 – 1/2″ BSPDownload PDF STEP Format
